332.0200.00 AS45
Insert
Material number 332020000AS45

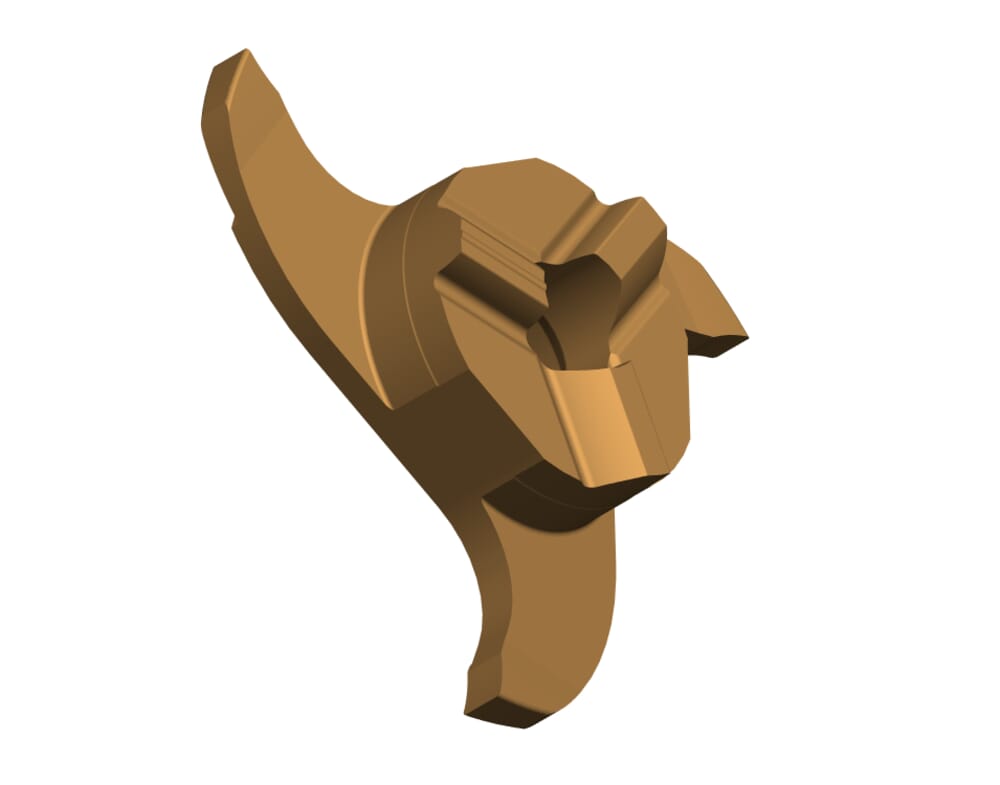

HORN Insert 332.0200.00 AS45 for Milling
Cutting diameter (Ds)
31.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN332143$84R$$$$$
DIN_SSC
HORN33214384R
Katalog_SSC
332143R
plating-seat-size
0
Width of groove (w)
2
mm
Maximum milling depth/ depth of groove (tmax)
8.3
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 332020000_20230112_150042398.STP | Download |
| 332020000_20210706_183621817.DXF | Download |
| Download all files | |
