328.0250.40 TI25
Inserts
Material number 328025040TI25

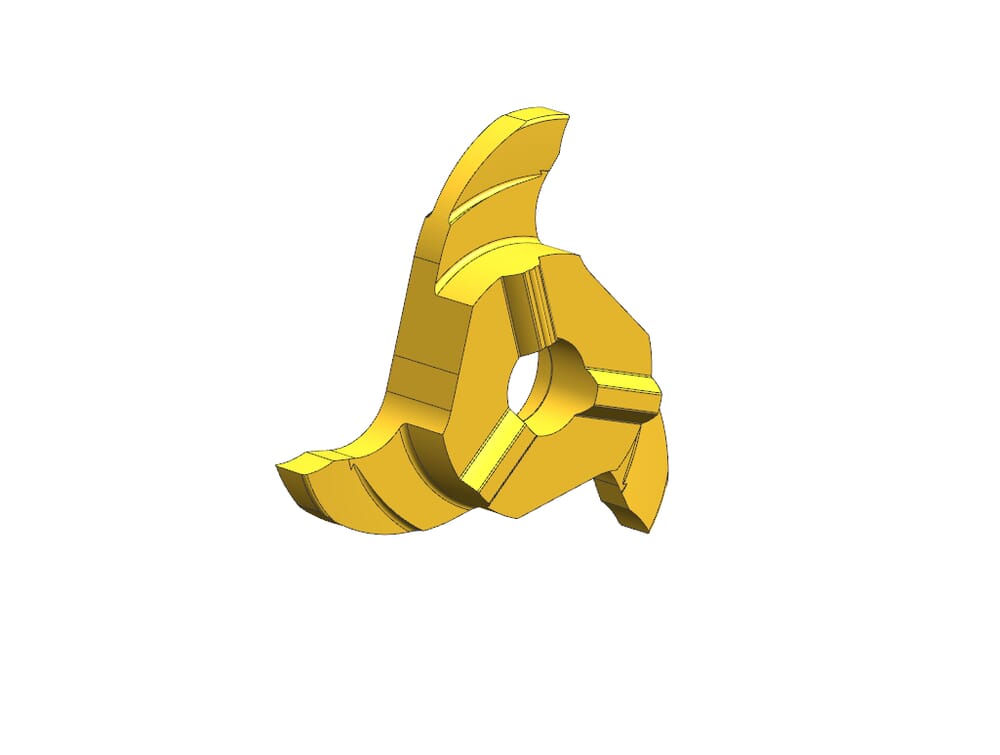

HORN Inserts 328.0250.40 TI25 for Milling
Cutting diameter (Ds)
27.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN328143$84R$$$$$
DIN_SSC
HORN32814384R
Katalog_SSC
328143R
plating-seat-size
0
Width of groove (w)
2.5
mm
Maximum milling depth/ depth of groove (tmax)
6.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| 328025040_20230112_142407743.STP | Download |
| 328025040_20210625_152657481.DXF | Download |
| Download all files | |
