313.0250.40 TI25
Inserts
Material number 313025040TI25

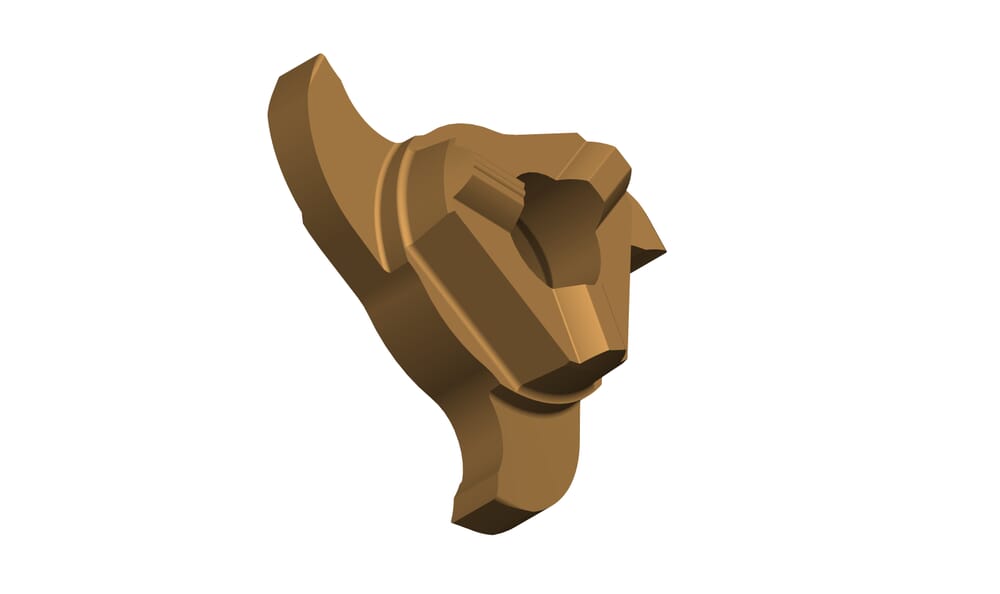

HORN Inserts 313.0250.40 TI25 for Milling
plating-seat-size
0

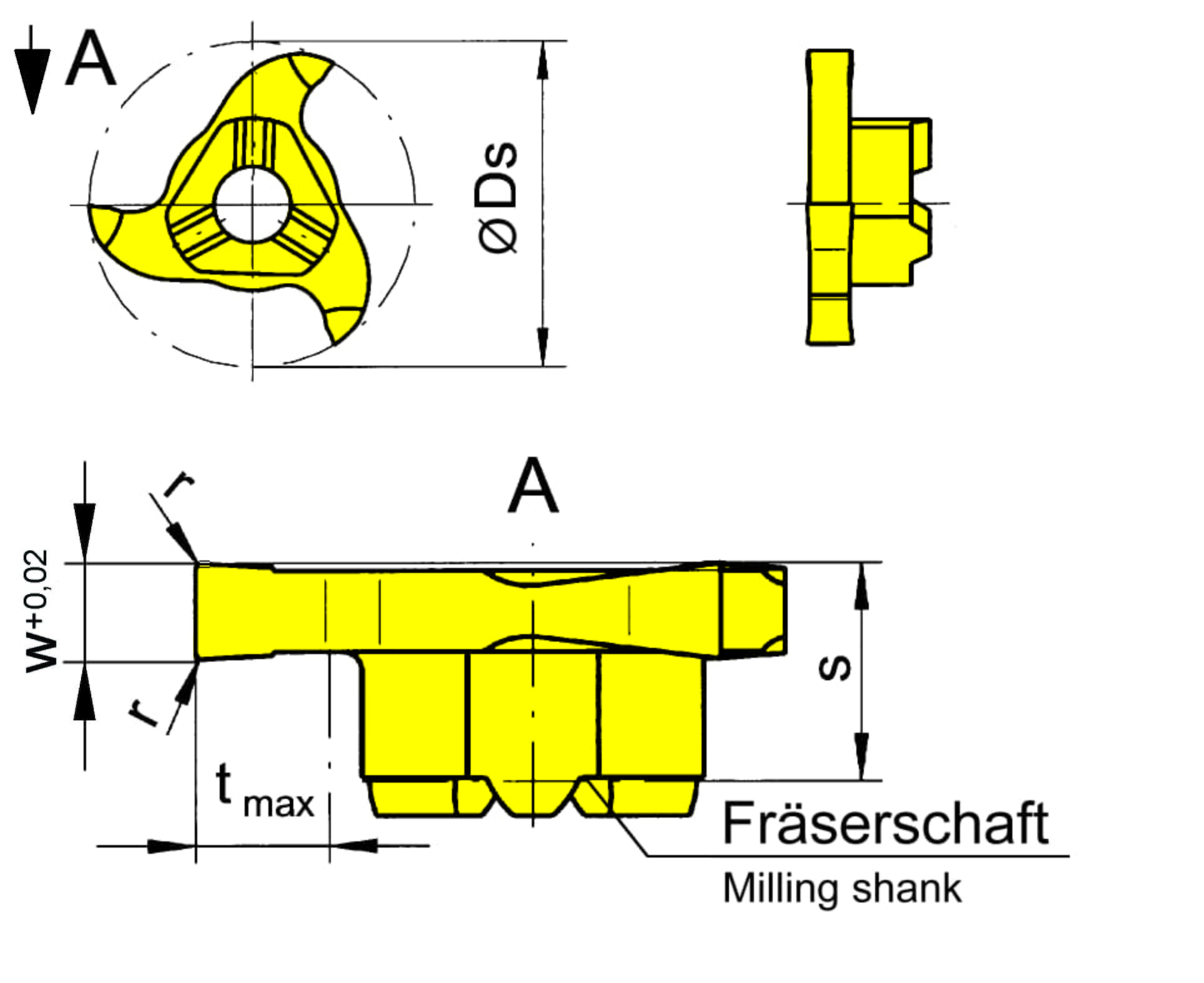

Width of groove (w)
2.5
mm
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Cutting insert thickness, setting length complete (s)
5.7
mm
Corner radius (r)
0.2
mm
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
| Downloads | |
|---|---|
| 313025040_20230112_142511588.STP | Download |
| 313025040_20210625_150945732.DXF | Download |
| Download all files | |
