313.0100.00 TN35
Inserts
Material number 313010000TN35

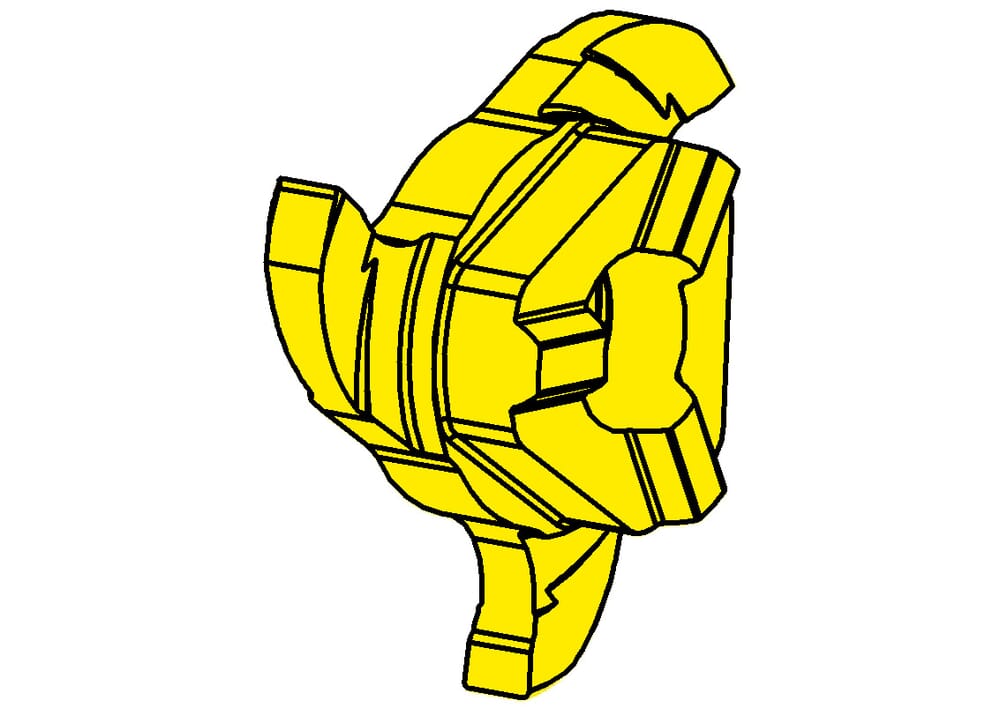

HORN Inserts 313.0100.00 TN35 for Milling
Cutting diameter (Ds)
21.7
mm
Number of teeth (Z)
3
St.
ISO_SSC
HORN313113$84R$$$$$
DIN_SSC
HORN31311384R
Katalog_SSC
313113R
Width of groove (w)
1.07
mm
Maximum milling depth/ depth of groove (tmax)
2.2
mm
Nominal range (Nw)
1
mm
Cutting insert thickness, setting length complete (s)
5.9
mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s1)
5.6
mm
| Downloads | |
|---|---|
| 313010000_20230112_141547984.STP | Download |
| 313010000_20210627_103236018.DXF | Download |
| Download all files | |
