217.1607.33 TN32
Inserts
Material number 217160733TN32

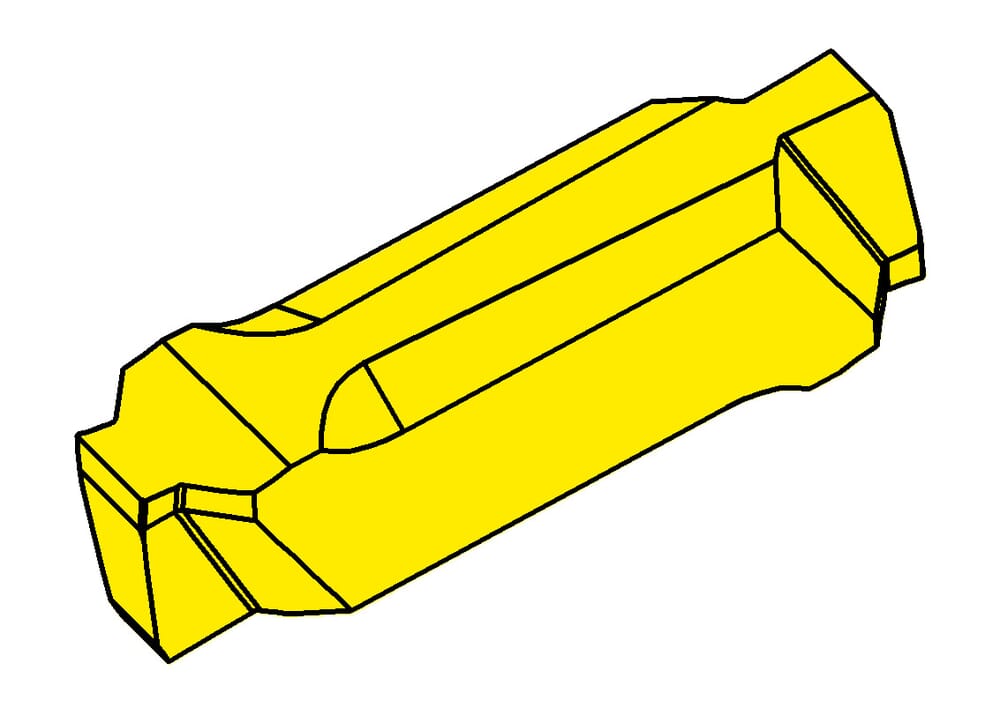

HORN Inserts 217.1607.33 TN32 for Turning
Cancellation (a1)
0.79
mm
Maximum depth of groove (tmax)
0.7
mm
Groove depth without groove outer edge chamfer (t1)
0.6
mm
ISO_SSC
HORN217030008N$$$$$
DIN_SSC
HORN-217030008N
Katalog_SSC
21703
Plating seat size (Größe)
3
Width of groove (w)
1.74
mm
Nominal range (Nw)
1.6
mm
Cutting insert width (s)
3.3
mm
| Downloads | |
|---|---|
| 217_1607_33.DXF | Download |
| Download all files | |
