312.1812.33 TN32
Inserts
Material number 312181233TN32

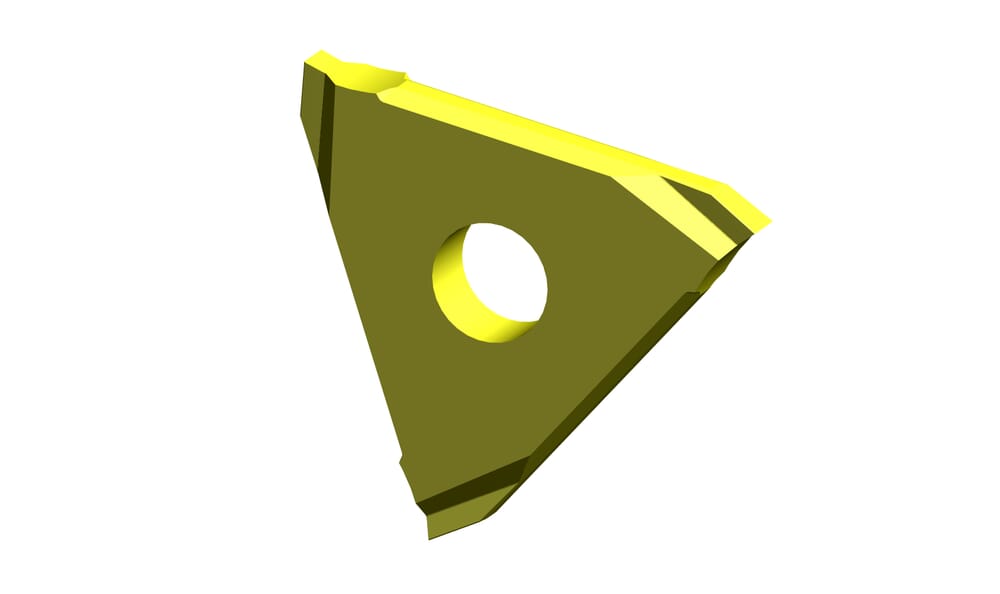

HORN Inserts 312.1812.33 TN32 for Turning
Cancellation (a1)
0.67
mm
Maximum depth of groove (tmax)
1.25
mm
ISO_SSC
HORN-31203$000N$$$$$
DIN_SSC
HORN-31203000N
Katalog_SSC
31203N
Plating seat size (Größe)
3
Width of groove (w)
1.99
mm
Milling depth without NAKF (t1)
1.1
mm
Nominal range (Nw)
1.85
mm
Cutting insert width (s)
3.3
mm
| Downloads | |
|---|---|
| 312181233_20240117_020634188.STP | Download |
| 312181233_20210706_202201377.DXF | Download |
| Download all files | |
