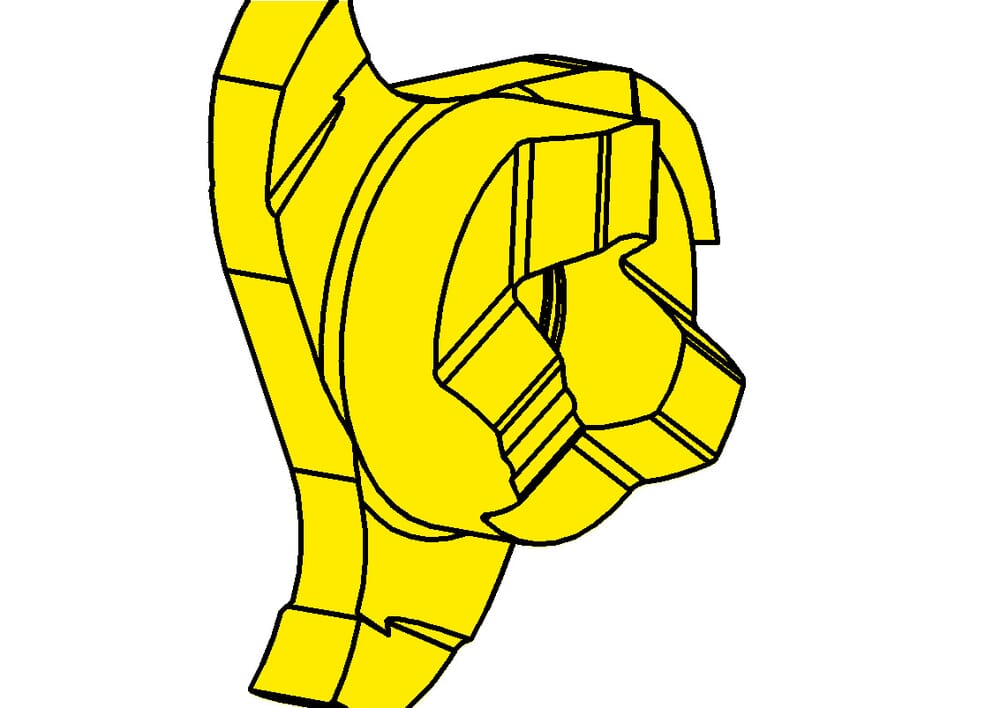

306.0110.40 TI25
Inserts
Material number 306011040TI25
HORN Inserts 306.0110.40 TI25 for Milling
cutting-edge-diameter-met
11.7
mm
number-of-teeth
3
St.
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
cutting-width-met
1.21
mm
milling-depth-groove-depth-max-met
2.5
mm
nominal-range-met
1.1
mm
cutting-insert-thickness-met
3.2
mm
| Downloads | |
|---|---|
| 306011040_20240117_010404875.STP | Download |
| 306_0110_40_20180430_142900793.DXF | Download |
| Download all files | |
