SM328.0020.05E

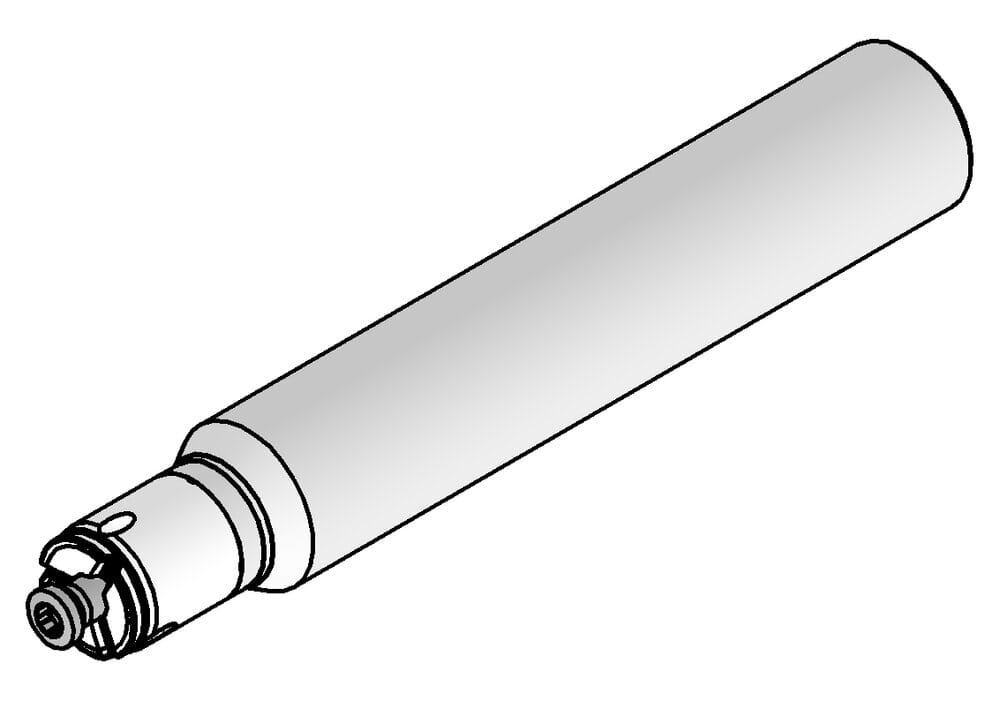

Milling cutter shank
Material number SM328002005E
HORN Milling cutter shank SM328.0020.05E for Milling
Shank diameter (d)
20
mm
ISO_CCTWS
HORN328143$84R$$$$$
DIN_CCTWS
HORN32814384R
Katalog_CCTWS
328143R
DIN_CCTMS
ZYL02005315
ISO_CCTMS
ZYL13G2000h$06
Neck diameter (d1)
15
mm
Cone diameter (d)
20
mm
Total length insert (l1)
130
mm
Working length, Neck length, Extension length (l2)
25
mm
Form (Form)
E
| Downloads | |
|---|---|
| SM328_0020_05E_20171121_195606243.STP | Download |
| SM328002005E.DXF | Download |
| Download all files | |
