L105.0820.1.9 TI25
Inserts
Material number L105082019TI25

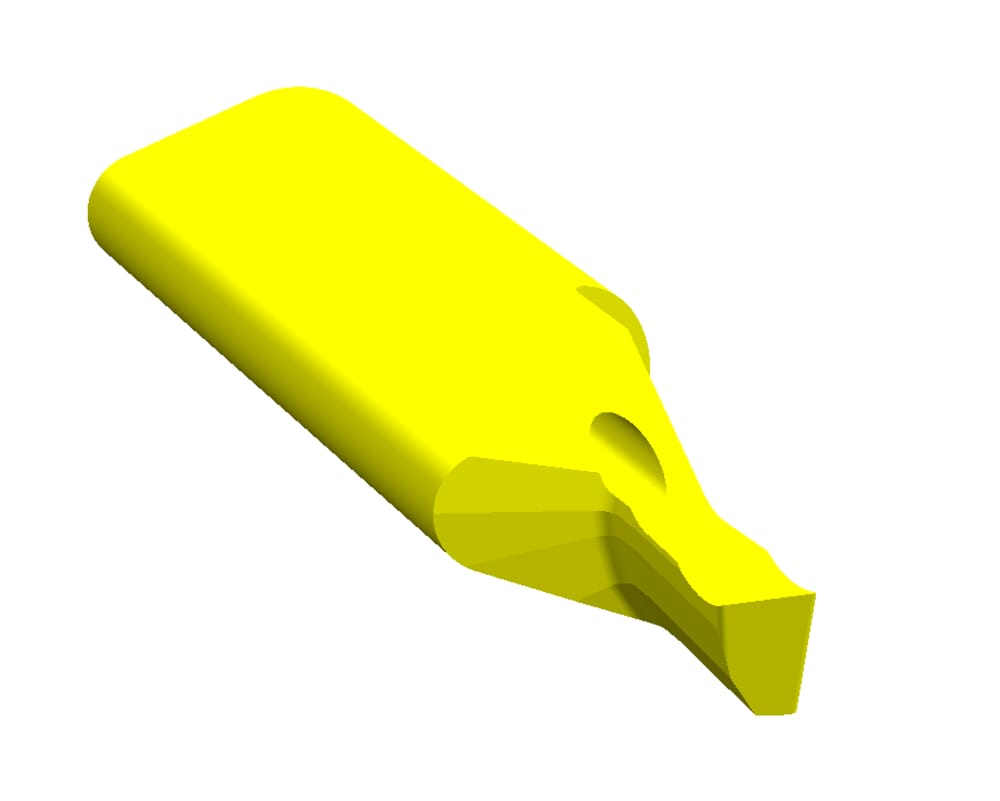

HORN Inserts L105.0820.1.9 TI25 for Turning
ISO_SSC
HORN105125$95N$$$$$
Total length (l5)
25 mm
Corner radius (r)
0.15 mm
Width of groove (w)
2 mm
Katalog_SSC
105125
Neck length (l2)
10 mm
Smallest axial bore diameter (Da min)
8 mm
Width of blank (b)
7 mm
Maximum depth of groove (tmax a)
4 mm
Adjustment dimension cutting center (f)
0.4 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105082019_20210626_001107660.DXF | Download |
| Download all files | |
