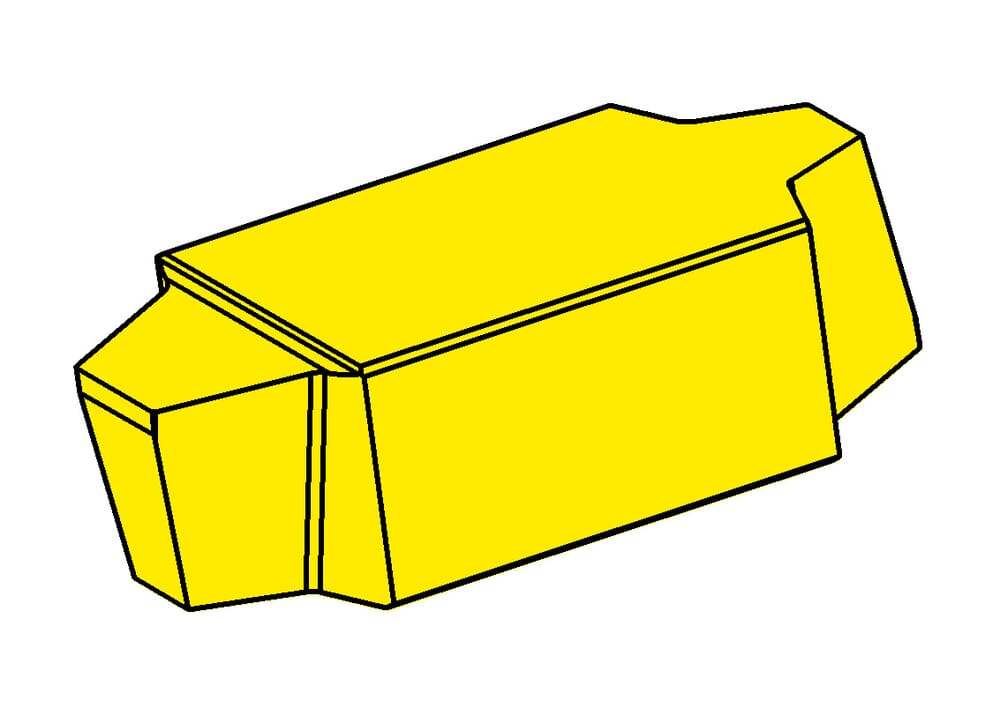

231.5500.02 TN35
Inserts
Material number 231550002TN35
HORN Inserts 231.5500.02 TN35 for Gewinden
Width at the base of the thread (b)
3.39
mm
Profile, thread depth (h1)
5.5
mm
ISO_SSC
HORN231070128N$$$$$
DIN_SSC
HORN-231070128N
Katalog_SSC
23107N
Plating seat size (Größe)
7
Cutting insert height, Cutting insert thickness (s)
7.8
mm
Pitch (P)
10
mm
Downloads | |
---|---|
231550002_20230112_154030196.STP | Download |
231550002_20210629_102324175.DXF | Download |
Download all files |
